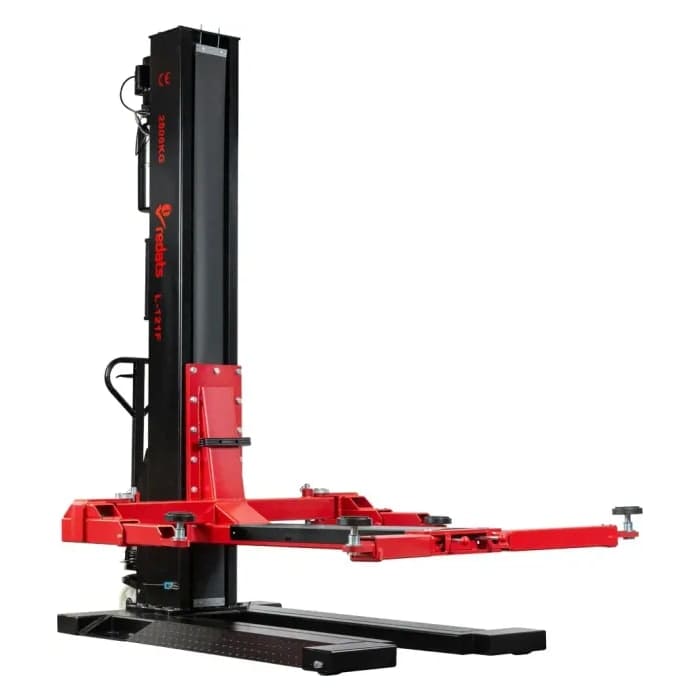

One post lift REDATS L-121F

REDATS L-121F - essential facts to tell your clients Got customers asking you about this lift? Here is a few specifications to keep in mind:

• capacity: 2800 kg

• Time to full rise: 60 s

• Column base size: 1140 x 1790 mm

• Lifting height: 1900 mm

• Arm length span: Rear 435-685mm, Front 640-970mm

WHAT CARS IS IT FOR? Check the infographic below.

What type of lift is it? This is a one-post, portable car lift. It boasts 2.8 tons of capacity, so you can easily use it for passenger cars and smaller car-derived vans.

Choose it if you look for a lift that:

• saves your space at the service - it takes up half of the space that a two-post lift would

• is easy to move around - it’s a structure similar to a pallet truck

• it doesn’t require floor mounting

• it is great for body and painting jobs

• it is great for smaller mechanical jobs - like brakes

Anything else you need to know? Type: one-post, portable

• dimensions: 2690 x 2470 x 3080 mm

• Capacity: 2800 kg (2.8 tons)

• Power source: 230V 50Hz

What does it work like in practice? Below, you can find some technical drawings for the lift - arm length and other useful data.

Easy access It is great for painting jobs, as it provides great access to the car’s body.

The lift is easy to move around It is based on a pallet truck, so you can easily move it to any spot at your service. What does it work like?

• Move the handle up and down

• The column moves up

• Now you can push/pull the lift

• Place it in the chosen spot

• Release the handle, so the column goes down

• The lift is ready for work!

Using conditions It is fit to be used (almost) anywhere. Just remember about these conditions:

• closed room

• even floor

• floor material: concrete

• power source: 230V

Before purchase, be sure to check raising points of the cars you are looking to work with

Important:

The user should provide and connect the power supply cable with inlet.

• Maximum capacity: 2,8 tons

• Manufacturer: REDATS

• Frame: not applicable

• Type: Automatic

• Dimensions: 3080 x 2470 x 2690 mm

• Column base size: 1140 x 1790 mm

• Arm length span: Rear 435-685mm, Front 640-970mm

• Power source: 230V 50Hz

• Time to full lowering: -

• Time to full rise: 60 s

• Lifting height: 1900 mm

• Floor thickness: not applicable

• Safety switch: yes

• Power: 2.2 kW

• Folding arms: YES

• Reinforcing frame: not applicable

• Additional options: -

• Anchors in set: not applicable

• Warranty (for companies): 12 months

• Warranty: 2 years (provided regular maintenance)
