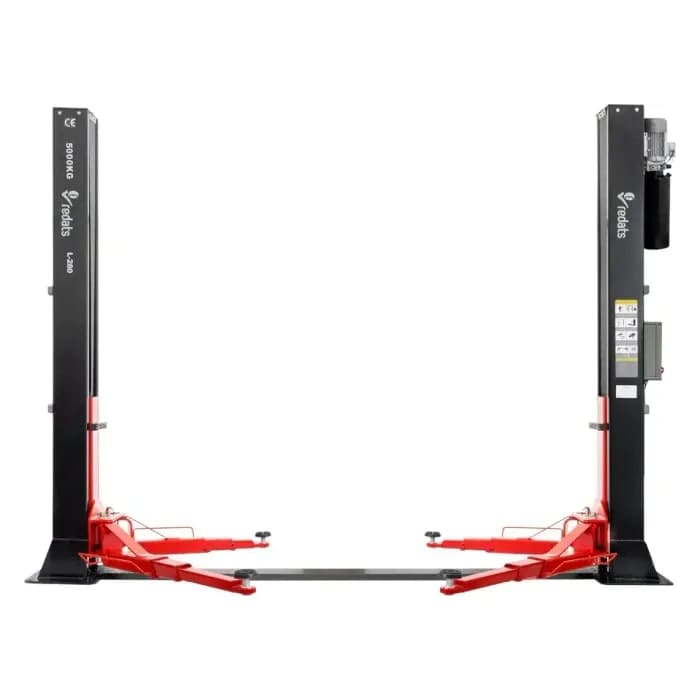

Automatic two post lift 5T REDATS L-280

REDATS L-280 - the essential info Recommend this lift to your customers who look for

• a two post lift with 5 tons capacity

• a two post lift with power source: 400V (3 phase)

• a lift with arm length span: 786 - 1798 mm - for VERY LONG cars!

• a lift that raises up to 1945 mm

• a lift with arms that can be set in 3 positions: long vans, delivery vans and regular passenger cars

• a lift that is able to raise low cars - arms can be lowered to 110 mm

Floor preparation Here are the basic requirements for installing this two post lift:

• floor surface 150cm x 450cm x 30cm

• flat surface

• min. floor thickness: 30 cm

• concrete class B25

• wait for 28 days until the floor surface hardens (in case it is fresh concrete)

• The floor should be a single concrete plate with the parameters listed above

What is the capacity? This lift boasts the capacity of 5 tons. It might be used for passenger cars and lighter commercial vans. It is based on a crossbeam connecting two posts.

Choose the automatic variant You can easily lift and drop the car using the buttons on the control panel. There is no need to release the safety lock manually. Both columns have electromagnets that automatically deactivate the locks, after pushing the button.

Easy arm setting You can use it for passenger cars, as well as commercial vans (like Mercedes Sprinter). The arm setting scope is: 786-1798 mm.

Operation comfort The asymmetric arms mean perfect balance for any car. There are 3 degrees for setting them in the car’s lifting point.

Application This lift provides easy access to any element of the car’s underbody - from the exhaust system, as well as suspension or other parts.

Durable chain There is no need to replace the chain, even after years of use. From time to time, you will have to give them a closer look, to make sure they are fine.

Stress-free work The lift’s posts have additional rubber protectors - they protect the car’s doors against damage.

Working safety Arm locking system saves the lift against sudden drop.

Before purchase, be sure to check raising points of the cars you are looking to work with

• Manufacturer: REDATS

• Type: Automatic

• Arm length span: 786 - 1798 mm

• Lifting height: 110 - 1945 mm

• Time to full lowering: 25 seconds

• Time to full rise: 50 seconds

• Folding arms: 3 degree adjustment

• Max. car width: 3022 mm

• Power: 3kW

• Power source: 400V

• Dimensions (width x height): 3980 x 2850 mm

• Column base size: 958 x 520 mm

• Warranty: 2 years (provided regular maintenance)

• Frame: Lower Frame

• Model: L-280

• Maximum capacity: 5 ton
