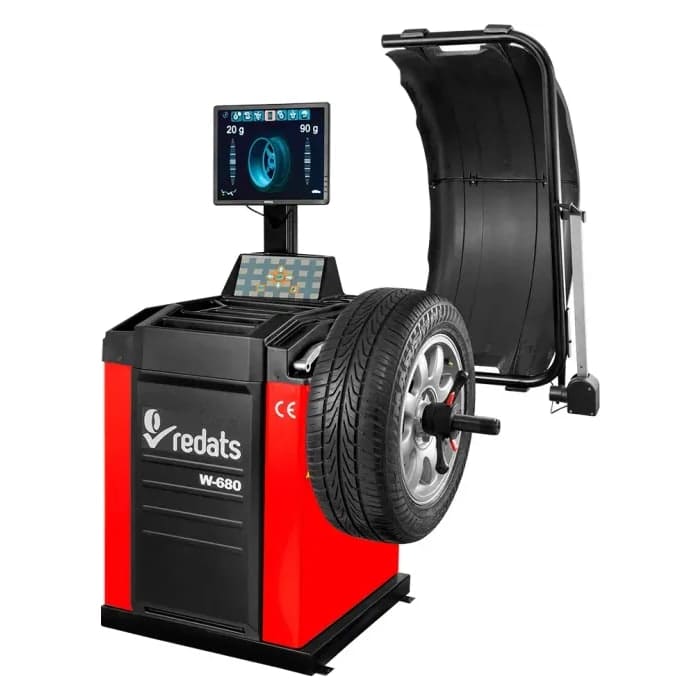

Wheel balancer REDATS W-680

What is that balancer for? REDATS W-680 is an automatic wheel balancer for wheels of cars and car-derived vans. It might be used for dealing with wheels that meet the following parameters:

• rim diameter 10” - 24” (256mm~610mm)

• max. wheel weight: 65 kg

Is it a good idea to get an automatic balancer? You don’t have to enter rim data manually. This balancer reads it out for you. So you won’t have to waste time on that!

Fully-loaded balancer This balancer comes with loads of functions that make it easier to work with every wheel:

• 9 balancing programs

• SPLIT function (dividing weight into smaller ones)

• rim-tyre positioning

• easy-to-read interface

Saves operators’ time The balancing cycle takes 8 seconds only. Yes, it takes so short to balance a wheel. This means, the REDATS W-680 balancer is a huge time-saver!

Better precision – the machine has an inverter!

What does it do?

It allows for smooth shaft rotation and automatically positions the wheel at the underweight spot.

This makes balancing more precise and shortens the time needed for wheel positioning. Smooth shaft operation enables more accurate measurements, reduces the risk of errors. Your customers will be able to work faster and more professionally

REDATS W-680 - technical datasheet

Here’s the most important information to tell your clients about this balancer:

• Type: Automatic

• Rim diameter: 10" - 24"

• Rim width: 1,5" - 20"

• Application: cars and car-derived vans

• Power source: 230V 50Hz

• Hidden weight program: YES

• ALU wheel programs: 9

• Auto-ALU (choosing the spot for adhering weights): yes

• Voice synthesizer: no

• Max wheel weight: 65 kg

• Measuring cycle time: 8 seconds

• Shaft diameter: 40mm (diameter) x 3mm (thread pitch)

When to recommend this balancer to your clients?

This is a perfect balancer for your customers that want

• main unit for their tyre shop

• automatic unit able to save their time

• unit able to deal with larger wheels: rim to 24” (diameter) and 20” (width)

• unit for cars and larger vans

Nine balancing programs The wheel balancer REDATS W-680 provides a quick operation with every wheel. By default, it has 9 balancing programs.

Imbalance optimisation Trouble balancing wheels (the imbalance exceeds 50 g)? This wheel balancer quickly solves the problem. Just use the OPT function - the balancer shows the points against which you have to rotate the tyre on the rim to decrease the imbalance mass.

• Type: Automatic

• Application: cars and car-derived vans

• Rim diameter: 10" - 24"

• Rim width: 1,5" - 20"

• ALU wheel programs: 9

• Power source: 230V 50Hz

• Hidden weight program: YES

• Auto-ALU (choosing the spot for adhering weights): yes

• Voice synthesizer: none

• Max wheel weight: 65 kg

• Measuring cycle time: 8 seconds

• Shaft diameter: 40mm (diameter) x 3mm (thread pitch)

• Operators' memory: no

• Rotating torque: 200 RPM

• Noise level: < 70 dB

• Power: 200W

• Display: 17" LCD

• Min imbalance: 1g

• Shaft blocking: Electromechanic brake

• Additional options: SPLIT & Autocalibration & Optimisation & Autodiagnosis & Automatic positioning of imbalance points

• Lift: no

• Imbalance positioning: sound signal

• Automatic data entering: yes - distance, diameter, width

• Standard equipment: 4x Cones (43-66,65-85,84-102,94-135) & 1x Pliers & 1x Calibration clip-on weight 100g & 1x quick-nut & 1x Small bushing & 1x Large bushing + rubber & 1x plastic caliper & 1 x Paper manual & 3x cones hanger & 1x Threaded shaft 40*3 & 1x wheel cover

• Dimensions (height x depth x width): 1252 x 843 x 1624 mm

• Weight: 109 kg

• Model: W-680

• Manufacturer: REDATS

• Warranty: 24 months (extension possible)

• Extra functions: Laser

• Warranty (for companies): 12 months (extension possible)
