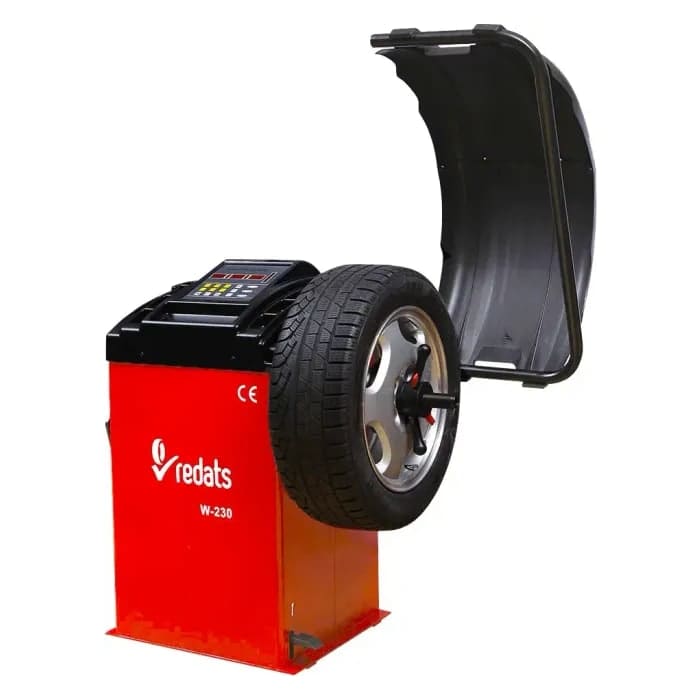

Wheel balancer REDATS W-230

Laser - perfect balancing precision This balancer comes with a laser pointer. It shows you the point to adhere the weight at.

REDATS W-230 - technical datasheet

Here’s the most important information to tell your customers about this balancer:

• Type: Automatic

• Rim diameter: 10" - 24"

• Rim width: 1,5" - 20"

• Application: cars and car-derived vans

• Power source: 230V 50Hz

• Hidden weight program: YES

• ALU wheel programs: 3

• Auto-ALU (choosing the spot for adhering weights): ALU-S

When to recommend it to your clients? This balancer is a perfect choice for your clients looking for

• automatic unit - saves their time

• unit that can handle larger wheels - up to 24” in diameter and 20” in width

• unit with 3 ALU wheel programs

Why is it worth your clients’ attention? They can be sure that the weight is at the right spot. The unit saves their time so they don’t need to worry about car drivers’ complaining.

Why is it worth your attention? You can be sure that the weight is at the right spot. You save time and don’t need to worry about customers complaining.

An even better quality This wheel balancer has replaced the well-renowned REDATS W-220 PRO. It provides an even better quality standard- the latest electronic solutions, as well as great materials mean that this balancer would work hassle-free in the coming years.

Improved working comfort This balancer has a foot brake, located on the right side of the casing. Simply press it tightly to stop the spinning wheel. Four balancing programs This product by REDATS has 4 balancing programs: 2 for ALU wheels, Normal mode and static mode. Ease of use The control panel contains a few keys only. You can easily use it even with gloves on. One balancing job is enough to learn how to use the balancer.

No more balancing errors There is an auto-calibration function, as well as automatic diagnostics. You don’t have to worry about any imprecise balancing. This balancer would notice the errors for you.

A wide range of uses You can easily use the balancer to work with wheels of passenger cars and motorcycles. The measuring time is 8 seconds. A special function will show you where to adhere the weights.

A complete set The set contains all the accessories essential for everyday work at tyre service:

• 1 allen wrench

• 1 weight pliers

• 1 circlip for measuring rim width

• 1 quick coupling

• 4 cones (adaptors)

• 1 calibration counterweight

• Galeria 360: https://video.redats.pl/towary/360/wywazarki/W-230/W-230/W-230.html

• Type: Automatic

• Application: cars and car-derived vans

• Rim diameter: 10" - 24"

• Rim width: 1,5" - 20"

• ALU wheel programs: 3

• Power source: 230V 50Hz

• Hidden weight program: YES

• Auto-ALU (choosing the spot for adhering weights): ALU-S

• Voice synthesizer: none

• Max wheel weight: 65 kg

• Measuring cycle time: 8 seconds

• Shaft diameter: 36mm (diameter) x 3mm (thread pitch)

• Operators' memory: no

• Rotating torque: 200 RPM

• Noise level: < 70 dB

• Power: 0,2 kW

• Display: LED

• Min imbalance: 1g

• Shaft blocking: Foot brake, electromechanic brake

• Additional options: Autocalibration & Optimisation & Autodiagnosis

• Maximum energy consumption: 200 W

• Lift: no

• Imbalance positioning: diody Led, sygnał dźwiękowy, wskaźnik laserowy(ALU-S)

• Automatic data entering: diameter; distance

• Standard equipment: Quick fix with a rubber and bushing & caliper & 4x Cones (43-65,55-86,84-103,94-135) & Calibration counterweight

• Dimensions (height x depth x width): 1097 x 737 x 1500 mm

• Weight: 77 kg

• Model: W-230

• Extra functions: Laser

• Manufacturer: REDATS

• Warranty: 24 months (extension possible)

• Warranty (for companies): 12 months (extension possible)
