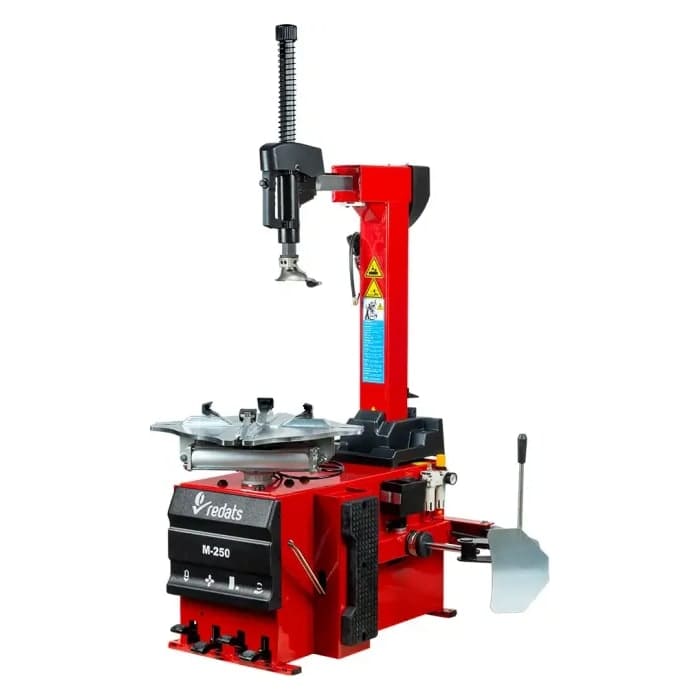

Automatic tyre changer REDATS M-250

A fully automatic tyre changer The word "automatic" is there for a reason. There is a number of pneumatic actuators that allow for easy setting of the tyre changer’s column. The user does not have to take any effort - all it takes is just pressing a pedal. Also, one can set the duckhead in a fixed position against the rim’s edge. There’s no need to change it, while working with a tyre set.

More options The turntable is really large. This means, you can easily work with larger wheels - up to 26" (diameter) and 16" (width). This tyre changer also boasts:

two-gear engine (with a pedal switch),

stronger arm - with bigger working range,

bigger piston - 200 mm of diameter.

Hassle-free operation Both the turntable and jaws are made of top-notch materials. They are going to last for long, provided that the basic maintenance jobs are done. Tight pneumatic system is equipped with air separators and quick couplings designed by renowned brands.

Better working precision - there is an inverter in the machine!

What does it give?

Thanks to the use of an inverter, the motor accelerates smoothly, giving you much greater control over the initial positioning of the tire under the rim edge during installation.

This solution increases control during tire mounting.

A smooth start and a gentle transition between the first and second gear give you even greater control over the machine.

This will increase assembly precision and reduce working time.

An upgrade! Elevate your customers’ business to the next level - let them work on RUNFLAT/low-profile tyres, using this unit! Simply install a LEVERLESS arm - this unit can easily be upgraded with it!

Tyre changer ready for work! Check what is the standard equipment of this tyre changer:

• plastic overlays for jaws - 4 pieces

• plastic overlays for duckhead (roller and protector)

• tyre lever 50 cm

• tyre inflation gun (with manometer)

• air preparation unit: oiler and air purifier

• Type: Automatic

• Application: cars and car-derived vans

• Power source: 3 phase (400V)

• Runflat/Low profile tyres: no

• Internal jaw spacing range: 14" - 26"

• External jaw spacing range: 12" - 23"

• Max. wheel diameter: 1143 mm

• Maximum wheel width: 406 mm

• Power: 1,1 kW

• Bead breaker shovel force: 2500 kg

• Working Pressure: 8 - 10 Bar

• Noise level: < 75 dB

• Turntable max. torque: 1078 Nm

• Table rotation speed: I speed: 6 RPM & II speed: 12 RPM

• Blocking of the arm and head: Pneumatic

• Standard equipment: Oil lubricator + air preparation unit & Inflation gun with manometer & Plastic caps for tyre changer (roller and duckhead) & Plastic jaw caps 4 pcs & Tyre lever & Accessories bucket & Plastic bead breaker shovel protector & Nakładka na rant felgi & Third hand clamp

• Weight: ca. 270 kg

• Dimensions (height x depth x width): 195 x 130 x 130 cm

• Model: M-250

• Additional options: 2-speed motor

• Manufacturer: REDATS

• Warranty: 24 months

• Warranty (for companies): 12 months
